How do I attach the tank bag to my R 1300 GS Adventure?

To attach the tank bag to your R 1300 GS Adventure, proceed as follows:

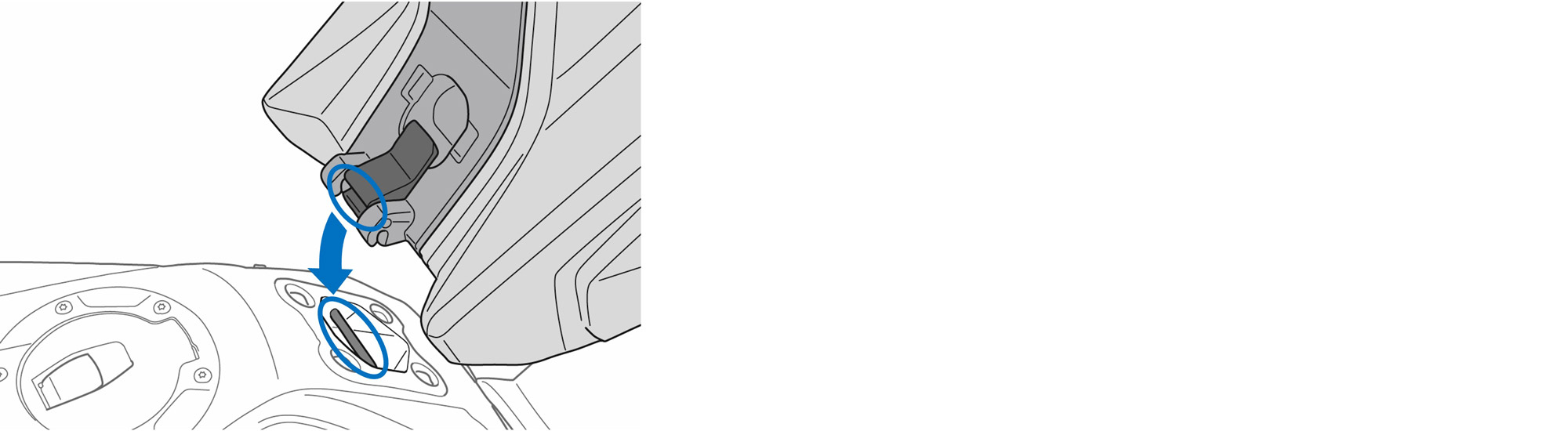

  1. Tilt the tank bag backward by approx. 45 degrees.
  2. Snap the lower rear side onto the bar provided on the R 1300 GS Adventure.
    1_attach-tank-bag

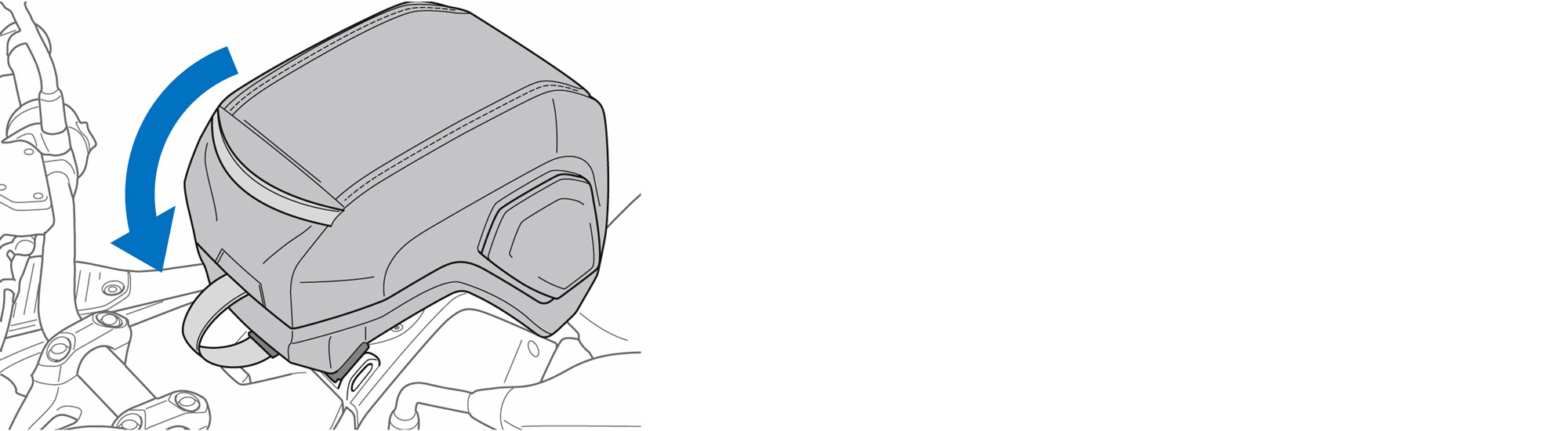

  3. Tilt the tank bag forward until it engages with an audible click.
    2_Click-tank-bag-in
  4. The tank bag is now securely attached to your R 1300 GS Adventure.


To remove the tank bag from your R 1300 GS Adventure, follow these steps:

  1. Pull the front strap that is attached to the tank bag.

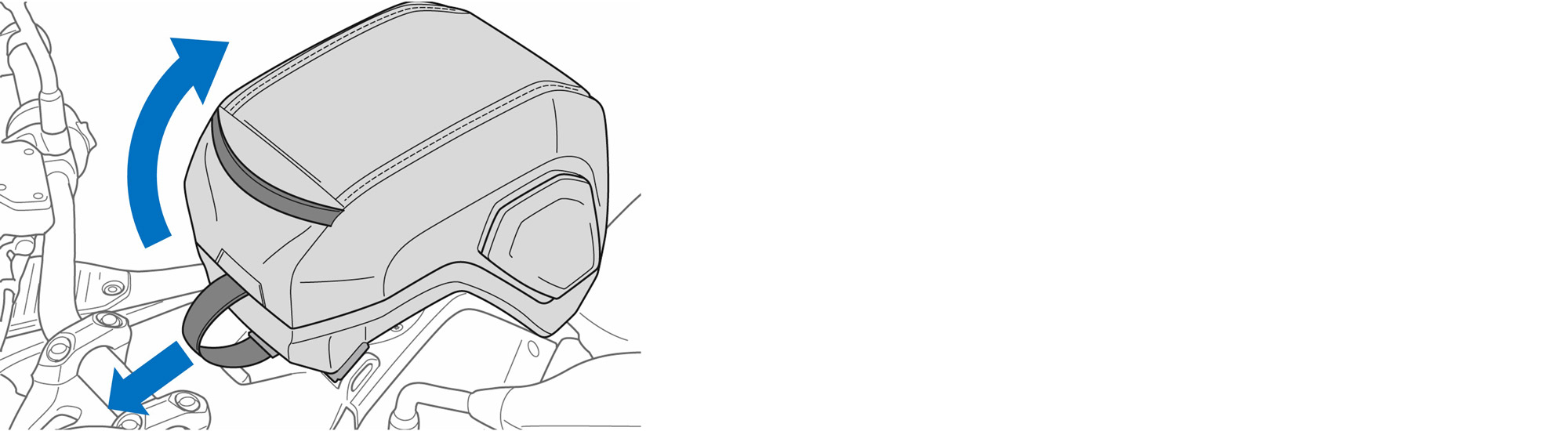

  2. Tilt it backward by approx. 45 degrees.
    3_Tilt_tank_bag-back

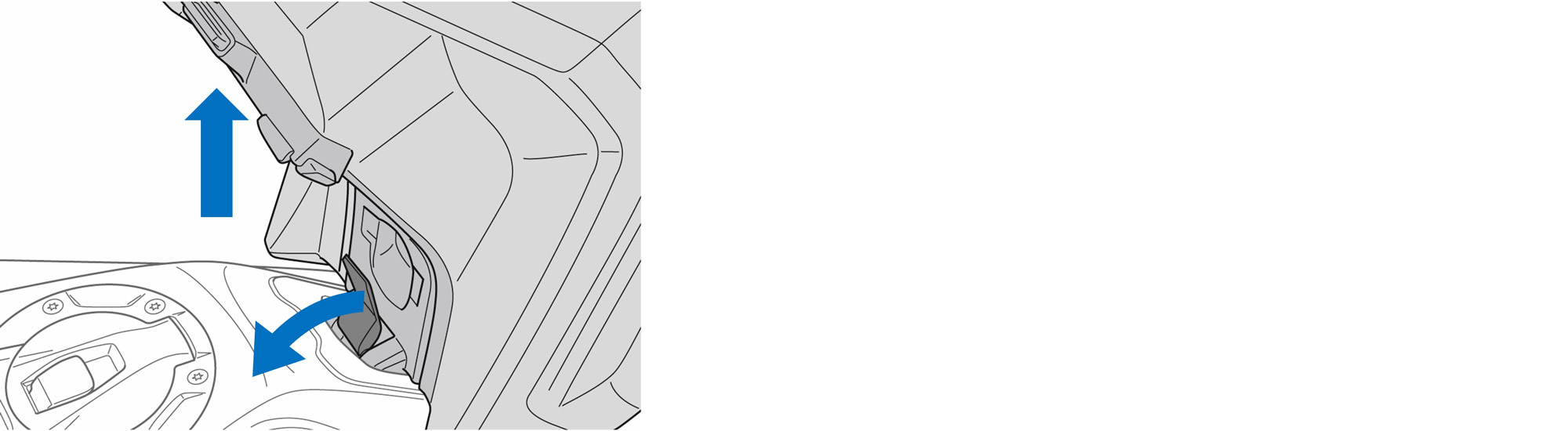

  3. Pull the flap on the connection between the tank bag and your motorbike forward.
  4. Now you can remove the tank bag from your R 1300 GS Adventure.
    4_Remove-tank-bag


Please note:
The maximum payload of the tank bag is 5 kg. The maximum permitted speed is 130 km/h.



Find out more about the storage options of the R 1300 GS Adventure in this video:
